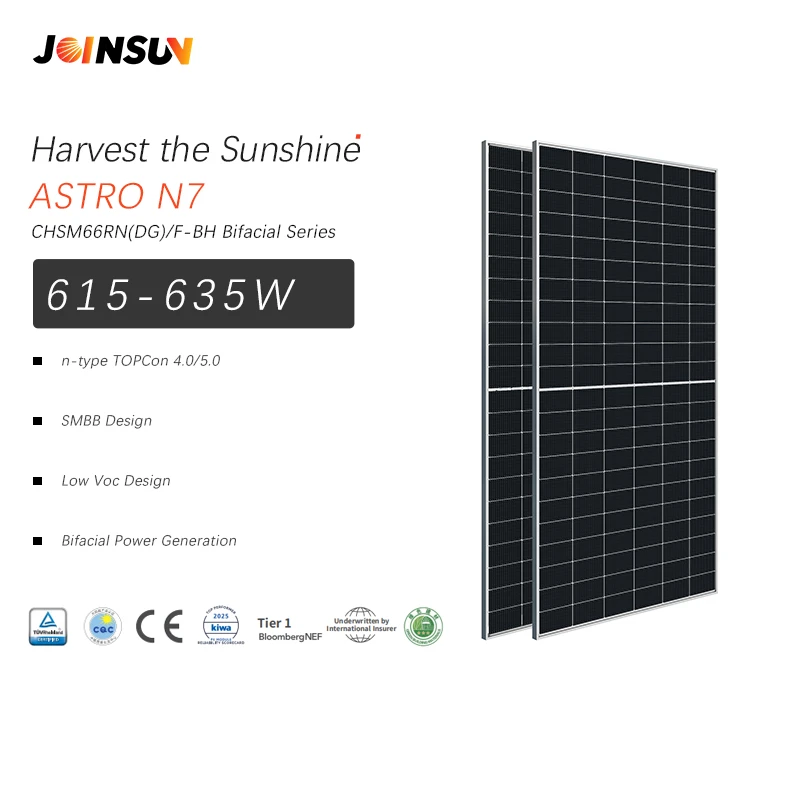

ASTRO N7 CHSM66RN(DG)/F-BH Bifacial Series
n-type TOPCon 4.0/5.0
Novel upgrade, enhancing module efficiency
SMBB Design
Enhancing current collection, minimizing power loss
Low Voc Design
Increasing modules per string, lower BOS cost
Bifacial Power
GenerationMaximizing bifaciality, boosting backside power output
| Model Type | CHSM66RN(DG)/F-BH |
| Power: | 635W |
| Weight | 31.65kg |
| Size: | 2382*1134*30mm |
| Packaging | 36 pcs/Pallet 720 pcs/40‘HQ containers |
SpecificationsGet a quote
Description
Comprehensive Certification
IEC 61215.IEC 61730
IS0 9001-2015-IS0 0ualite Management Sustem
IS0 45001-0ccunational Health and Safete
The first solar company which passed the Nord IEC/TS 62941 certification audit
Electrical Characteristics (STC Test)
|
Type |
CHSM66RN(DG)/F-BH |
|
Rated Maximun Power (Pmax) [W] |
635 |
|
Open ciruit voltage (Voc/V) [V] |
49.42 |
|
Rated Voltage (Vmp)[V] |
41.86 |
|
Short Circuit Currents(Isc)[A] |
16.35 |
|
Module Efficiency |
23.5% |
|
Power Tolerance |
0-±3% |
|
Biafciality |
80±10% |
