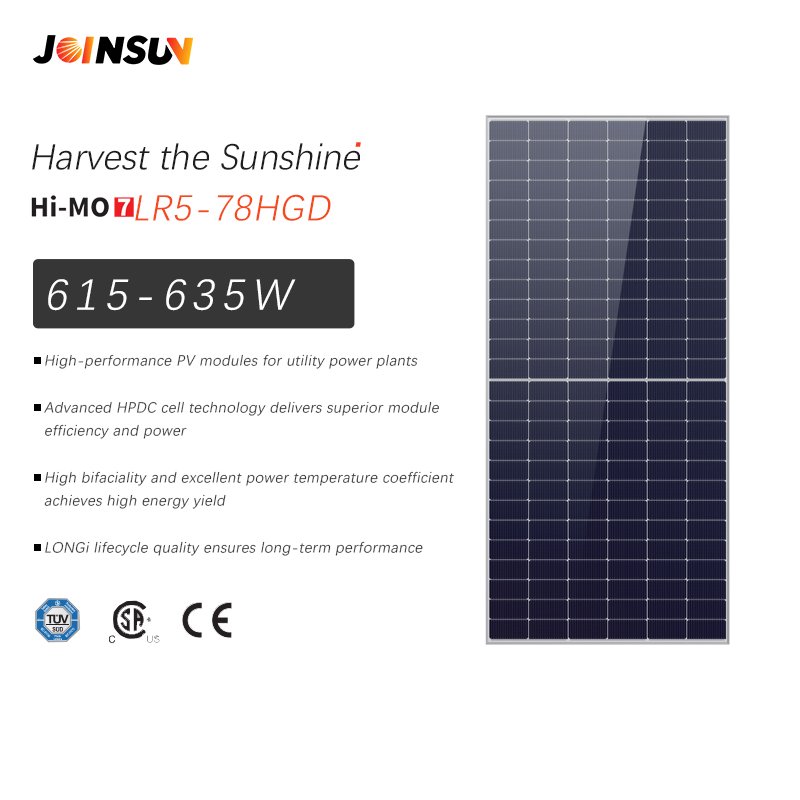

Hi-Mo 7 Longi Solar Panel LR5-78HGD 615-635M
1.High-performance PV modules for utility power plants
2.Advanced HPDC cell technology delivers superior module efficiency and power
3.High bifaciality and excellent power temperature coefficient achieves high energy yield
4.LONGi lifecycle quality ensures long-term performance
5.Product Warranty 12 Years, Power Warranty 30 Years
| Model Type | LR5-78HGD 615-635M |
| Power: | 635W |
| Weight | 35.1kg |
| Size: | 2465X1134X30mm |
| Packaging | 36 pcs/Pallet 576 pcs/40 HQ containers |
SpecificationsGet a quote
Description
Comprehensive Certification
Complete System andProduct Certifications
IEC 61215, IEC 61730, UL 61730
ISO9001:2015: ISO Quality Management System
ISO14001: 2015: ISO Environment Management System
ISO45001: 2018: Occupational Health and Safety
IEC62941: Guideline for module design qualification and type approval
Electrical Characteristics (STC Test)
|
Type |
LR5-78HGD 615-635M |
|
Rated Maximun Power (Pmax) [W] |
635 |
|
Open ciruit voltage (Voc/V) [V] |
57.39 |
|
Maximum Power Voltage (Vmp)[V] |
48.15 |
|
Short Circuit Currents(Isc)[A] |
13.97 |
|
Maximum Power (Pmax/W) |
635 |
|
Module Efficiency |
22.0 |
|
Power Tolerance |
0-3% |
|
Biafciality |
80±5%
|
|
Nominal Operating Cell Temperature |
45±2% |
|
Maximum Series Fuse Rating |
30A |
|
STC |
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G |
