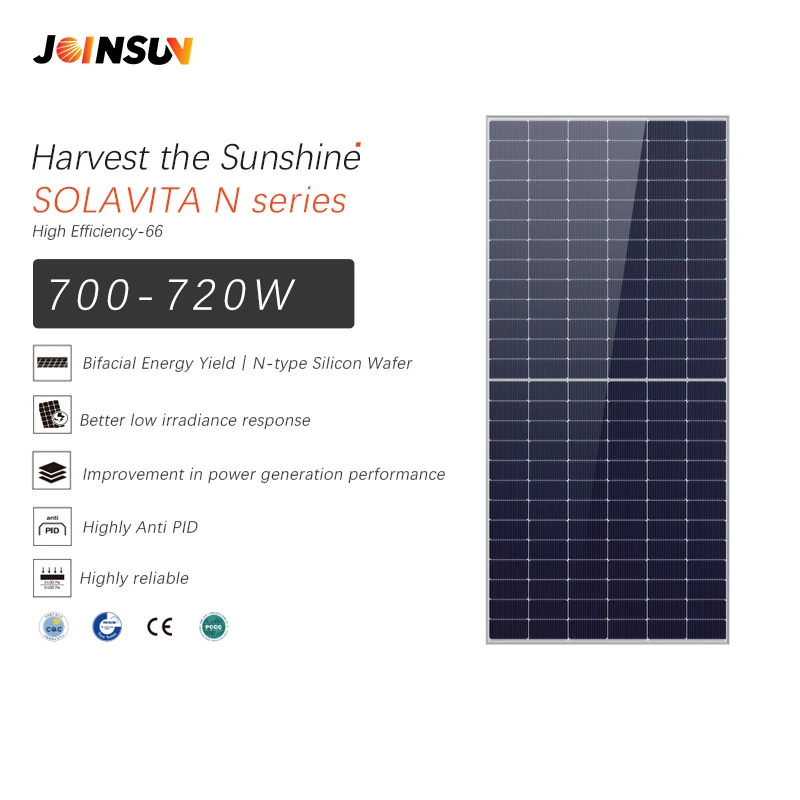

Solavita N+ Series Solar modules QM182THCD645-78
Bifacial Energy Yield丨N-type Silicon Wafer
Additional power generation from the backside of
bifacial modules increases the overall energy yield
Better low irradiance response
Superior power generation under shading conditions
Improvement in power generation performance
Conversion efficiency reached 22.89%
Highly Anti PID
linear power warranty with first year ≤1% degradation
and an annual degradation rate of up to 0.4% after that.
Mechanical load enhancement
Maximum wind load（3600Pa）/ Maximum snow load（5400Pa）
| Model Type | QM182THCD650-78 |
| Power: | 650W |
| Weight | 34.2kg |
| Size: | 2465*1134*30mm |
| Packaging | 36 pcs/Pallet 576 pcs/40 HQ containers |
SpecificationsGet a quote
Description
Comprehensive Certification
IEC 61215(2021), IEC 61730(2018)
ISO 9001:2015: Quality management systems
ISO 14001:2015: Environmental management systems
ISO 45001:2018: Occupational health and safety management systems
Electrical Characteristics (STC Test)
|
Type |
QM182THCD645-78 |
|
Rated Maximun Power (Pmax) [W] |
645 |
|
Open ciruit voltage (Voc/V) [V] |
57.99 |
|
Maximum Power Voltage (Vmp)[V] |
48.40 |
|
Short Circuit Currents(Isc)[A] |
13.81 |
|
Maximum Power (Pmax/W) |
650 |
|
Module Efficiency |
23.07% |
|
Power Tolerance |
0-±5W |
|
Biafciality |
80±10%
|
|
Operating Temperature |
-40°C~+85°C |
|
Maximum System Voltage |
1500V DC (IEC) |
|
STC |
Irradiance 1000W/m2, cell temperature 25°C, AM1.5G |
