High customer value

– Low Voltage design with higher string power, eectively reducing BOS

(Balance of System) and LCOE (Levelized Cost of Energy) by 1%~5%

– Excellent compatibility with existing mainstream system components



High power up to 655W

– Up to 23.1% module e_x001D_ciency, on 210 innovative platform

– Patented i-TOPCon technology with continuous e_x001D_ciency improvement,

including contact resistance reduction, rear reection enhancement and

edge quality repairment



High reliability

Minimized micro-cracks with innovative non-destructive cutting

technology and high-density packaging

– Reduced risks of hot-spot with half-cut technology

– Certied high resistance against salt, ammonia, sand, PID, LID, LeTID

– Sustainable in harsh environments and extreme weather conditions



High energy yield

– Excellent low irradiation performance, validated by 3rd party

– Lower temperature coe_x001D_cient (-0.29%/°C)

– Higher bifaciality, with up to 10%~20% additional power gain from

back side depending on albedo

– Reliable dual-glass structure with 30-year power guarantee

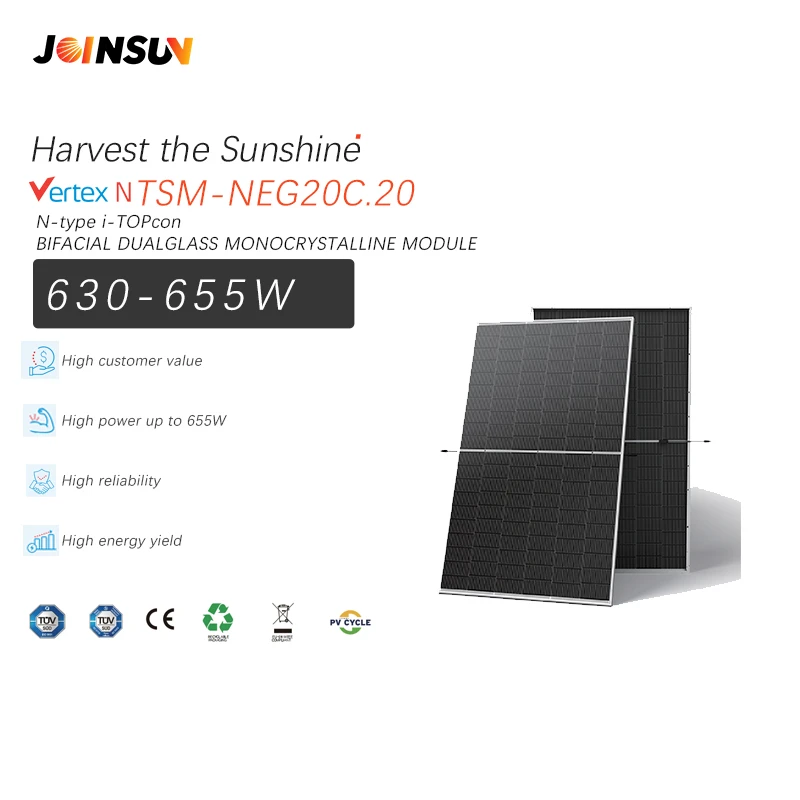

Type	TSM-NEG20C.20 630-655W
Rated Maximun Power (Pmax) [W]	650
Open ciruit voltage (Voc/V) [V]	45.1
Maximum Power Voltage (Vmp)[V]	37.4
Short Circuit Currents(Isc)[A]	18.36
Maximum Power (Pmax/W)	650
Module Efficiency	22.8%
Power Tolerance	0-±5W
Biafciality	80±10%
Operating Temperature	-40°C~+85°C
Maximum System Voltage	1500V DC (IEC)
STC	Irradiance 1000W/m2, cell temperature 25°C, AM1.5G
